(Italiano) No limits
An OMAG machining centre means no limits to any range of work.

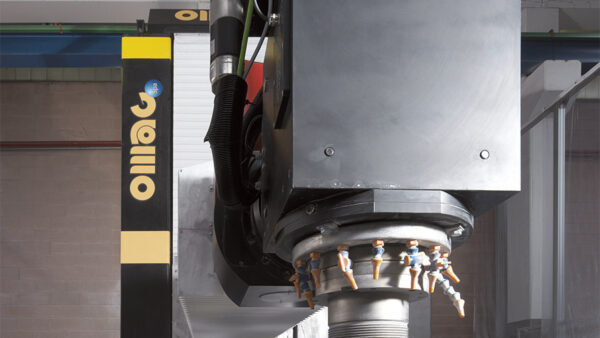

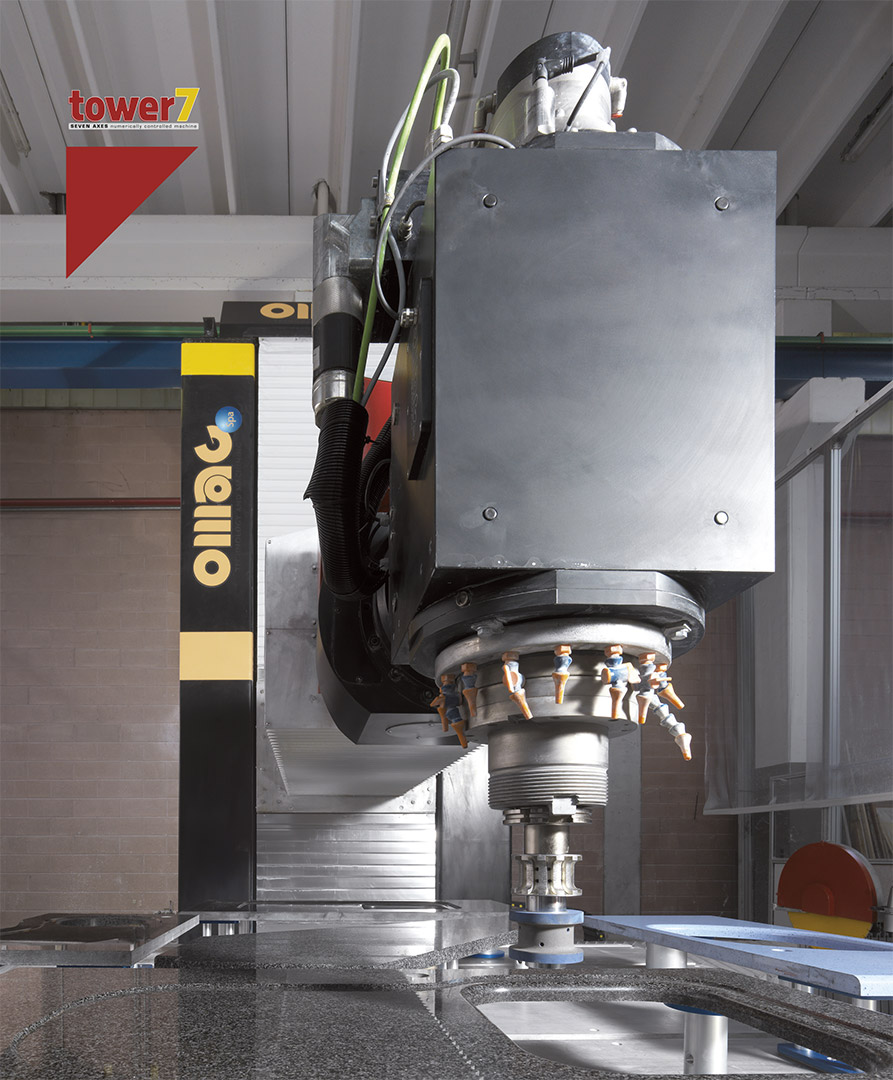

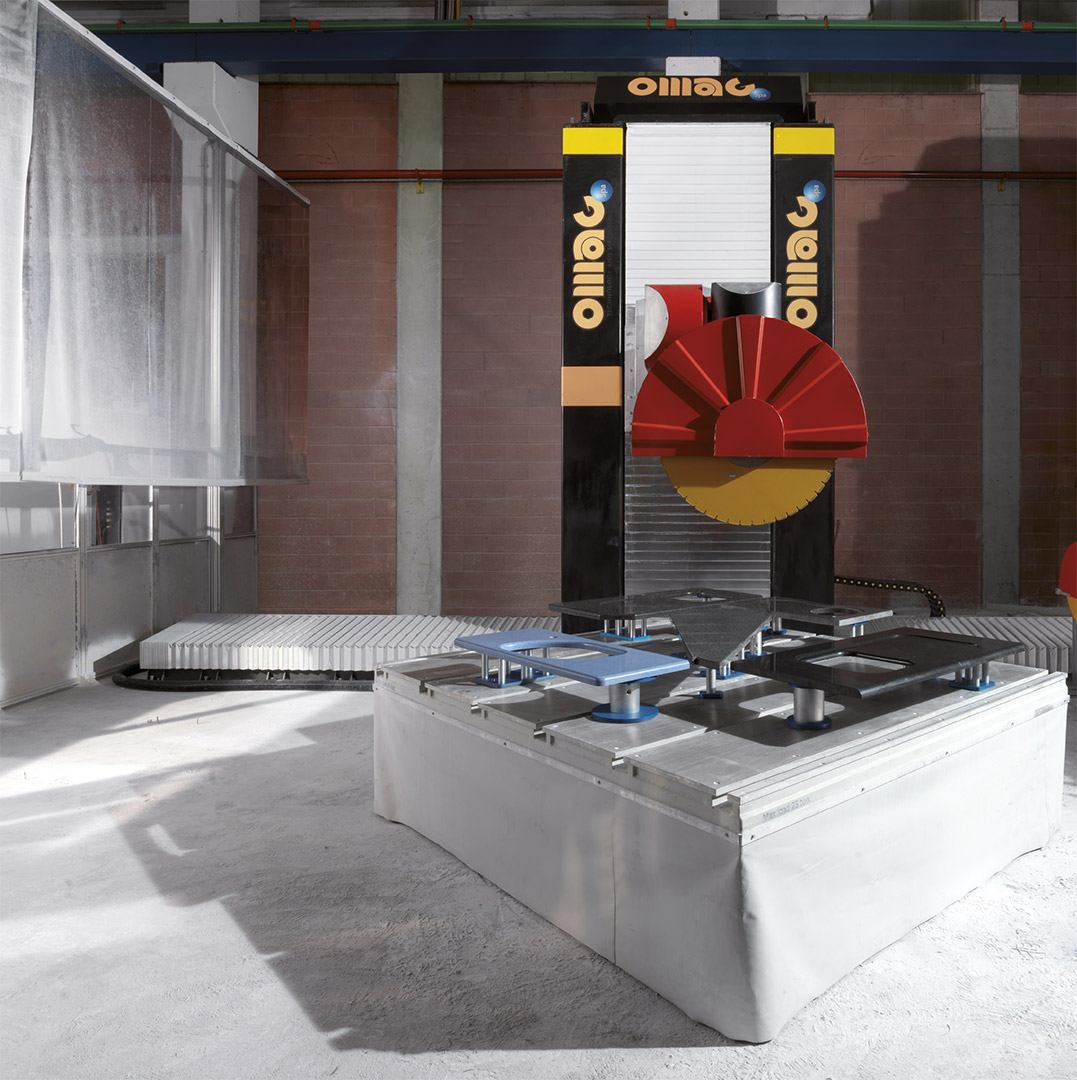

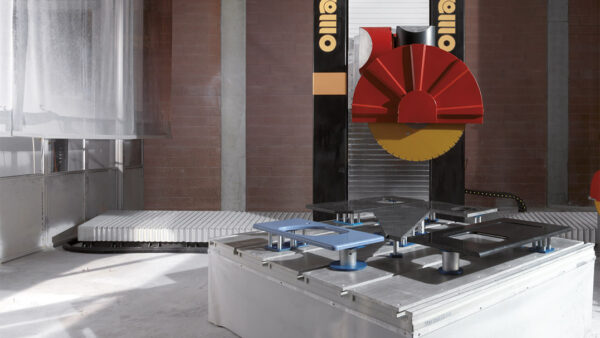

TOWER combines all the solutions developed by OMAG throughout its extended experience in leading-edge technology machines, allowing TOWER maximum rigidity and “limitless” movement capability.

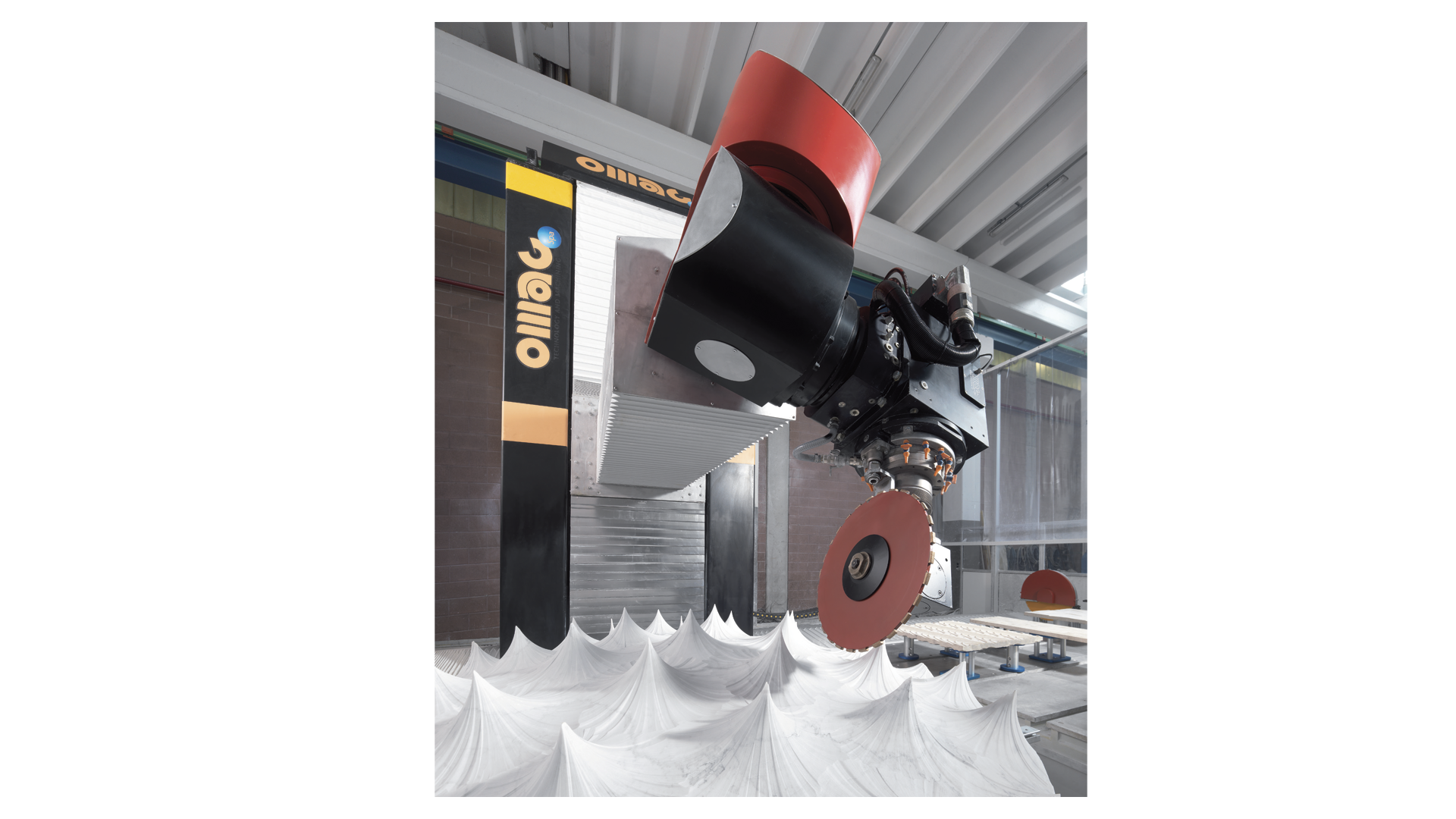

TOWER, despite moving in a robot-like manner, features a torsional rigidity 50% higher than traditional anthropomorphic systems.
TOWER means no limits to any range of machining, it is designed and built so that it can be equipped and customised in order to perform any machining typical of smaller or bigger workshops.
Gallery
Video

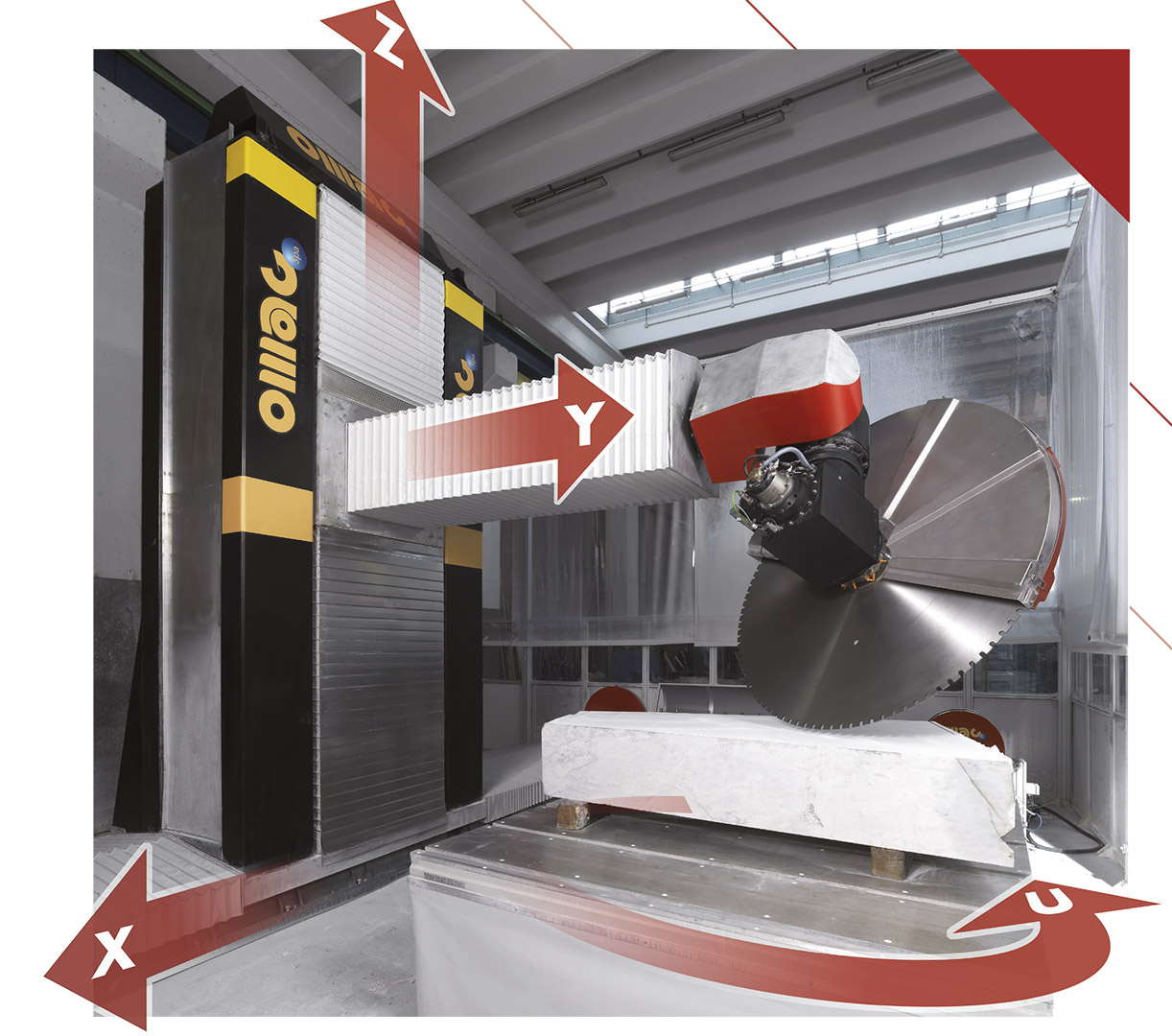

| Interpolated controlled axes | 7 axes |
| X AXIS transversal stroke | 4.000 mm. to 12.000 mm. on demand |
| X AXIS movement speed | 0 ÷ 60 mt./min. |

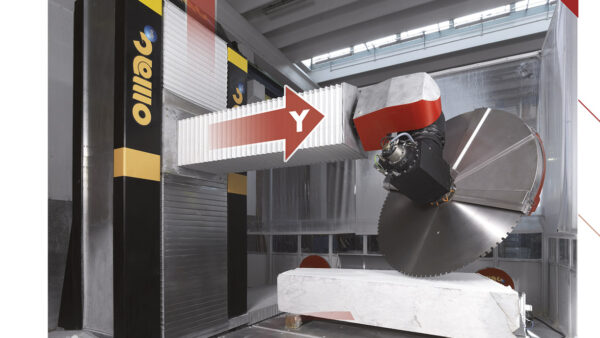

| Y AXIS longitudinal stroke | 2.000 mm. to 3.000 mm. on demand |
| Y AXIS movement speed | 0 ÷ 60 mt./min. |
| Z AXIS vertical stroke | 2.500 mm. to 6.000 mm. on demand |
| Z AXIS movement speed | 0 ÷ 60 mt./min. |
| B AXIS rotation | 0° ÷ +185° -185° |
| C AXIS rotation | 0° ÷ -10° +185° |
| A AXIS rotation | 0° ÷ +185° -185° |
| U AXIS rotation Working table | 3.6 RPM (weight capacity 25 ton. – 35 ton.) |
| Working table sizes | 3.500 x 2.000 mm. on demand |
| (Max) blade diameter BLADE5NC version | Ø 1.450 mm. |
| Motor power | S1 – Kw. 40 / H.p. 54 |
| Tool Attachment | ISO50 |
| Automatic blade change | from Ø 1.100 mm. on demand |
| Rotating control by inverter | 0 ÷ 8.000 RPM (ISO50 version) |
| Tool storage capacity | chosen by the customer (ISO50 version) |
| Water consumption (about approximate 4 bar) | 60 Lt. / min. |
| Air consumption | 20 Nl / (6 bar) |
| Machine weight | on demand |
